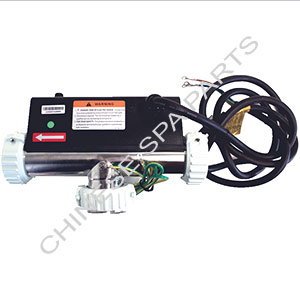

LX H30-R3 T-Shape Heater 3.0KW
LX H30-R3 T-Shape Heater 3.0KW
Price: 89,17 € ex. VAT
(107,00 € inc. VAT)
Product Code: LX303

Stock: 10 available, 2 - 5 days delivery

Type of Product: Heater assembly
Manufacturer: LX
Power: Volts: 230
Hz: 50
KW: 3.0
Amps: 13.6
HP:
Specifications: Sensor compatibility: Controlled by the system control box
Material spec:
Required flow rate: Set by a pressure switch, this switch will need to be pressurised, if it runs straight to a big bore outlet with no bends, there will be no back pressure and it may not work
Flow detection: Pressure switch built into the heater run on a separate cord
Compatible With: Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project
Connections & Fixings: 1.5 inch white plastic female sockets to connect to plumbing
Dimensions: Length: 250 mm
Diameter: 50 mm
Between terminals: 200 mm
Overall length complete: 340 mm
Additional Notes:

This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly

High limit thermal cutout built in. This unit is rated IPX5 and has CE approval.
